The BioPostural System® is a system composed of a specific software for acquiring generic, clinical and anamnestic data of the patient, images and posturometric signals.
The software was developed using the "GUI" Graphics User Interface technology for a detailed view of the exam performed which leads the user in an intuitive way to the identification and study of problems related to the patient's posture. It brings together forms for easy compilation, acquisition and consultation of objectified data, assisted by the sophisticated processing of the same thanks to the mathematical tools used. The operator will thus be able to use the final synthesis easily and quickly for the correct correlation with the patient's clinical picture.

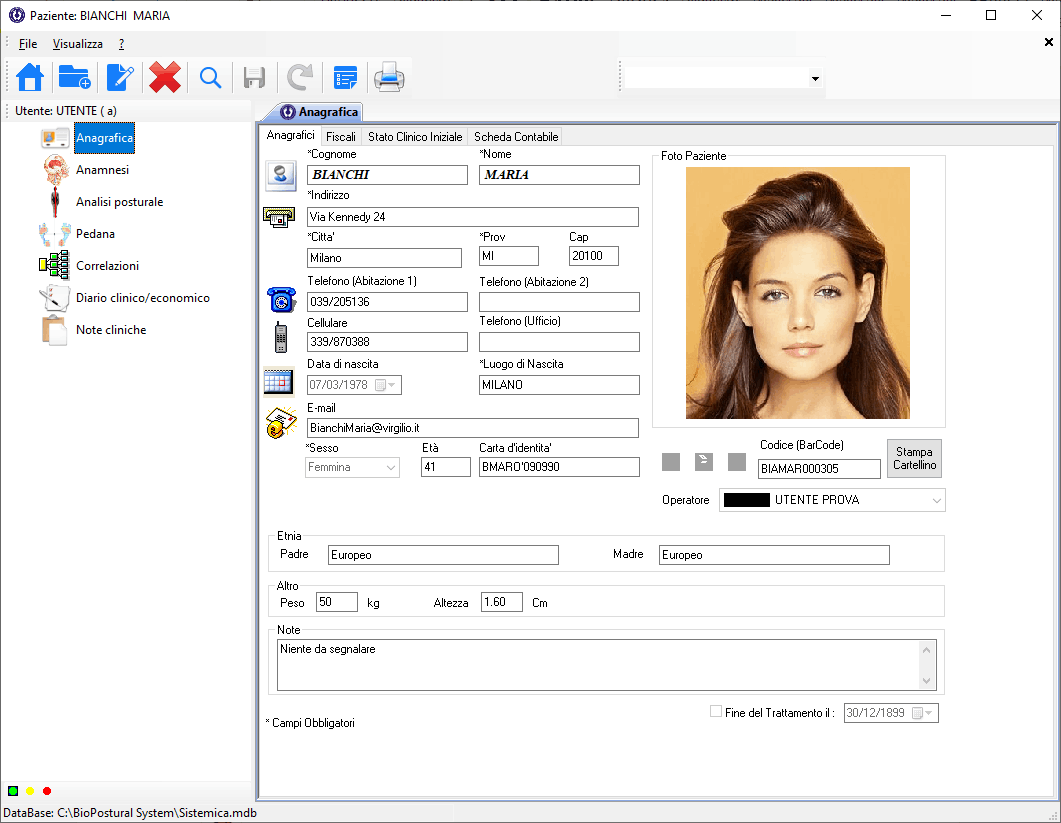

Complete registry of fiscal data and initial clinical status of the patient as well as of the accounting situation;
Anamnestic card, Graphic muscle pain map and general pain table

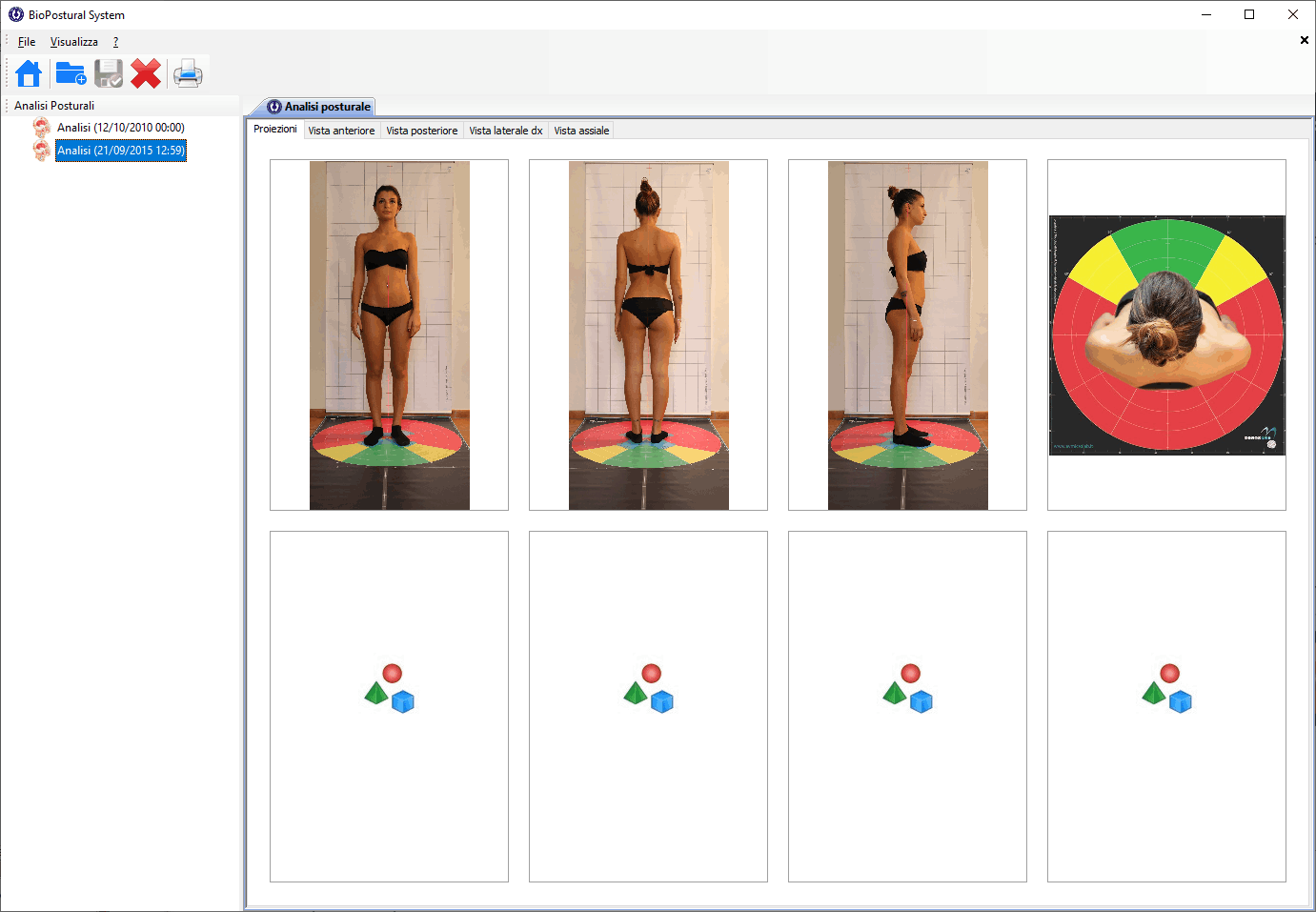

In this module it is possible to objectify the static situation of the patient in upright posture in the four projections, replacing the posturoscope and offering an analysis result calculated on the basis of the arrangement of the points and the inserted loaves, directly on the patient's photo.
THE ANALYSIS PROJECTIONS
Front: to evaluate the Harmony of the Postural Tone;
Posterior: to evaluate the position of the head, shoulders and sacrum with respect to the Barrè vertical;
Lateral: to evaluate the position of the head, shoulders and sacrum with respect to the posterior plane;
Axial: for the evaluation of torsion in the axial plane

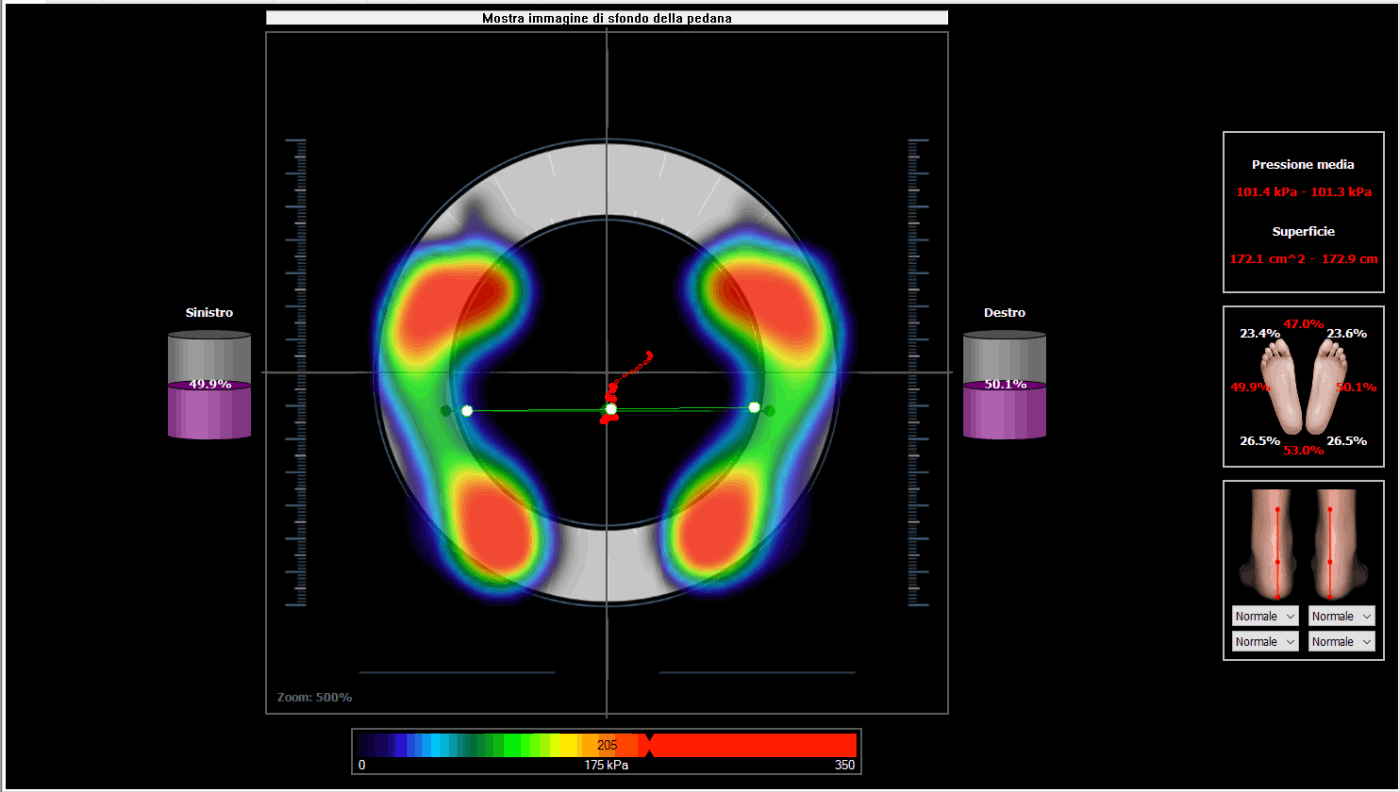

Partial and total load distribution and support surfaces, barycentric axis, rear foot

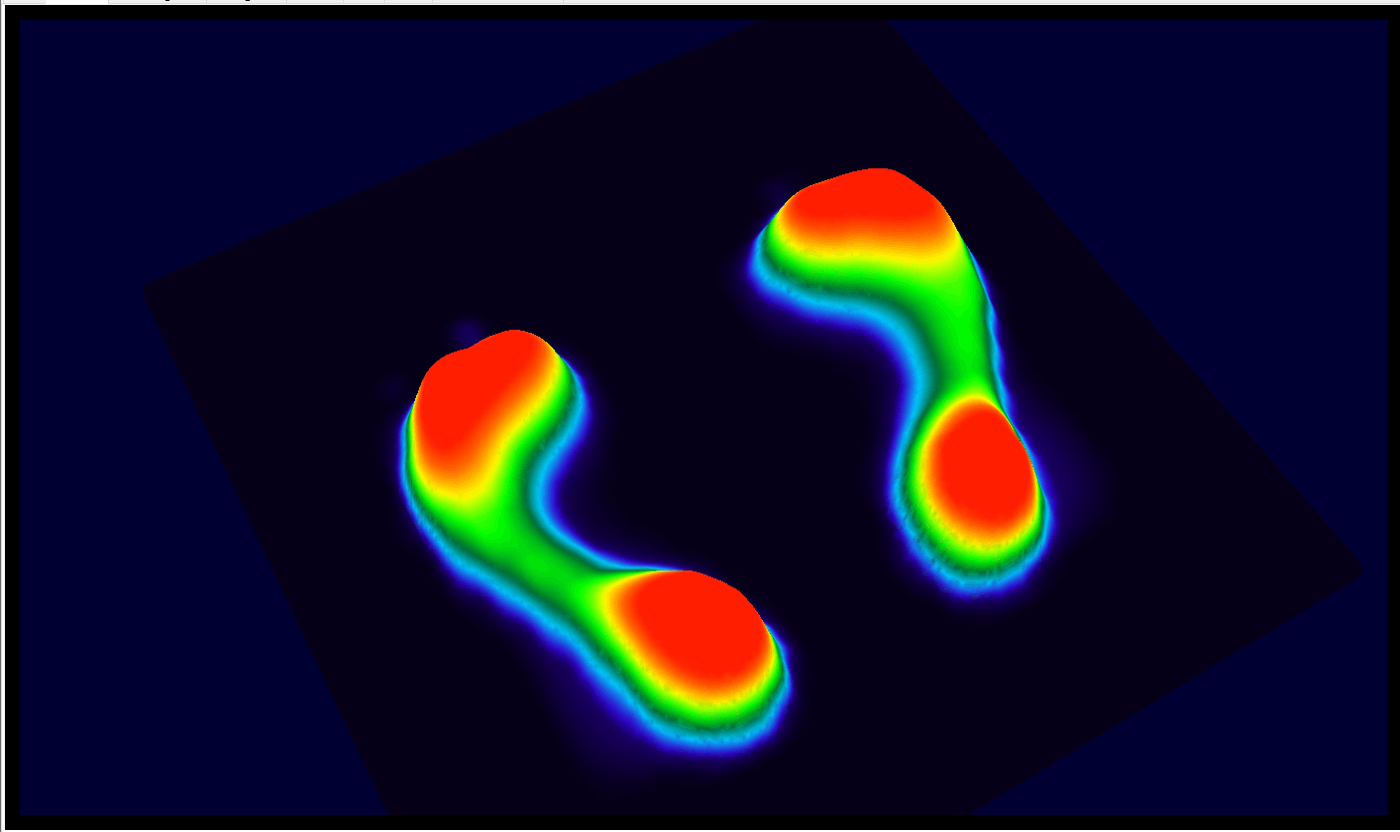

The 3D visualization of the distribution of loads helps a lot in evaluating the patient's support
Evaluation of the ball and ellipse of confidence with the orientation of the axes (area, length, Speed, Acceleration, LFS, etc.), Sway density.

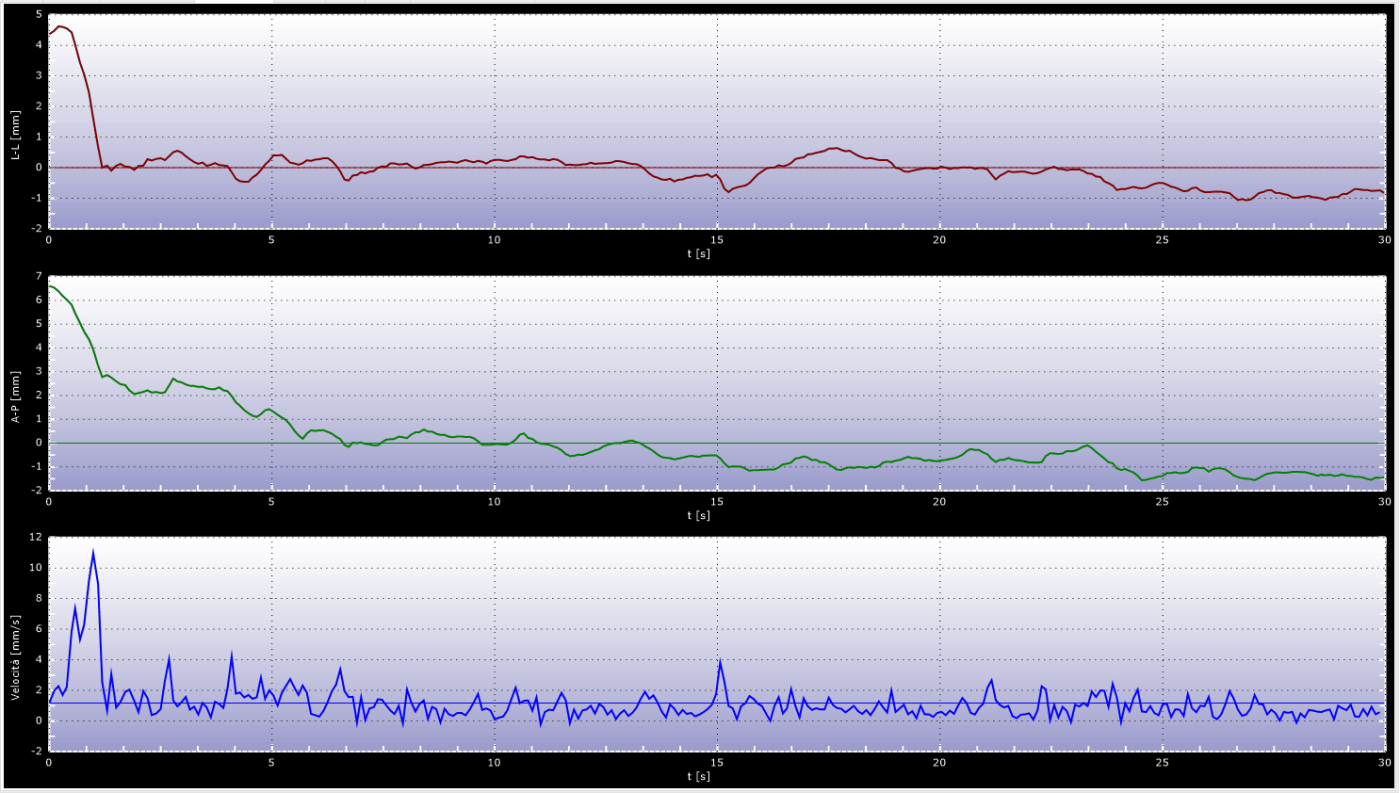

The stabilograms represent the displacement recorded during the examination of the center of gravity in L / L and A / P with respect to its average value (X-mean, Y-mean)

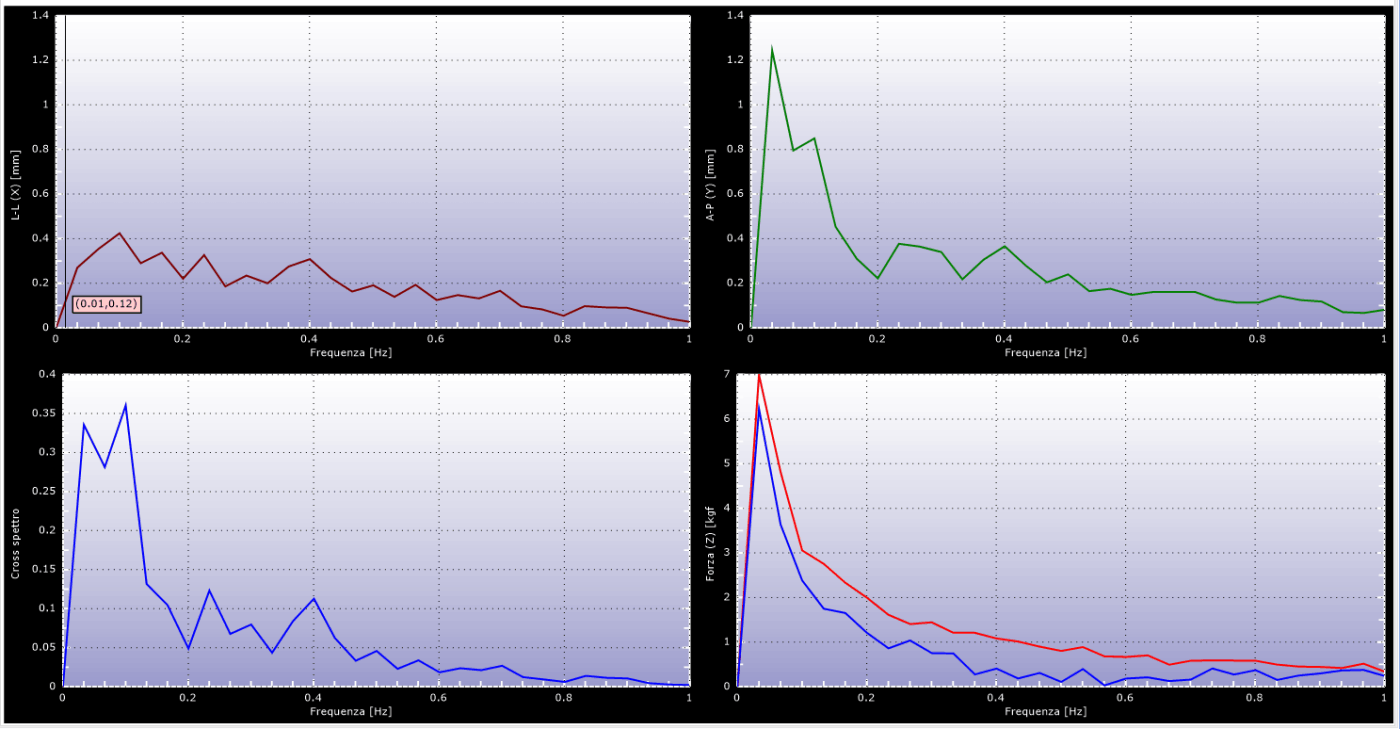

The spectral analysis of the oscillations using the FFT, The oscillation frequencies are processed to highlight the correlation between A / P and L / L oscillations
The section of the global summary contains in a single screen, all the peculiar information of the analysis, enriched with a graphic schematization of the FFT

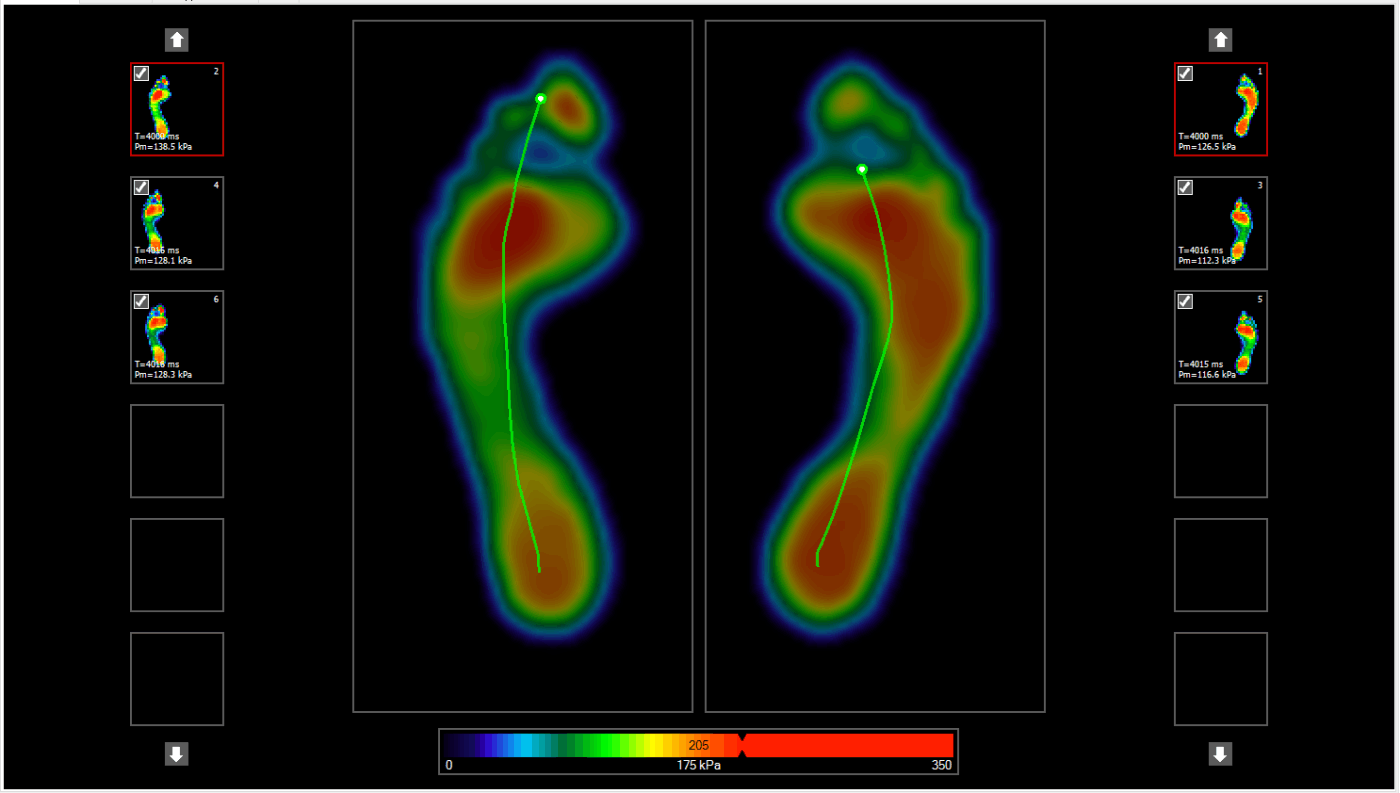

The dynamic analysis evaluates the progress of the step during walking on the platform, acquired one foot at a time. They objected: the loads, the force graphs and it is possible to review a film of the dynamics of the step
Global summary of the analysis with automatic calculation of the postural index deriving from the exclusive Microlab algorithm obtained from the Radar Balance of the main descriptors

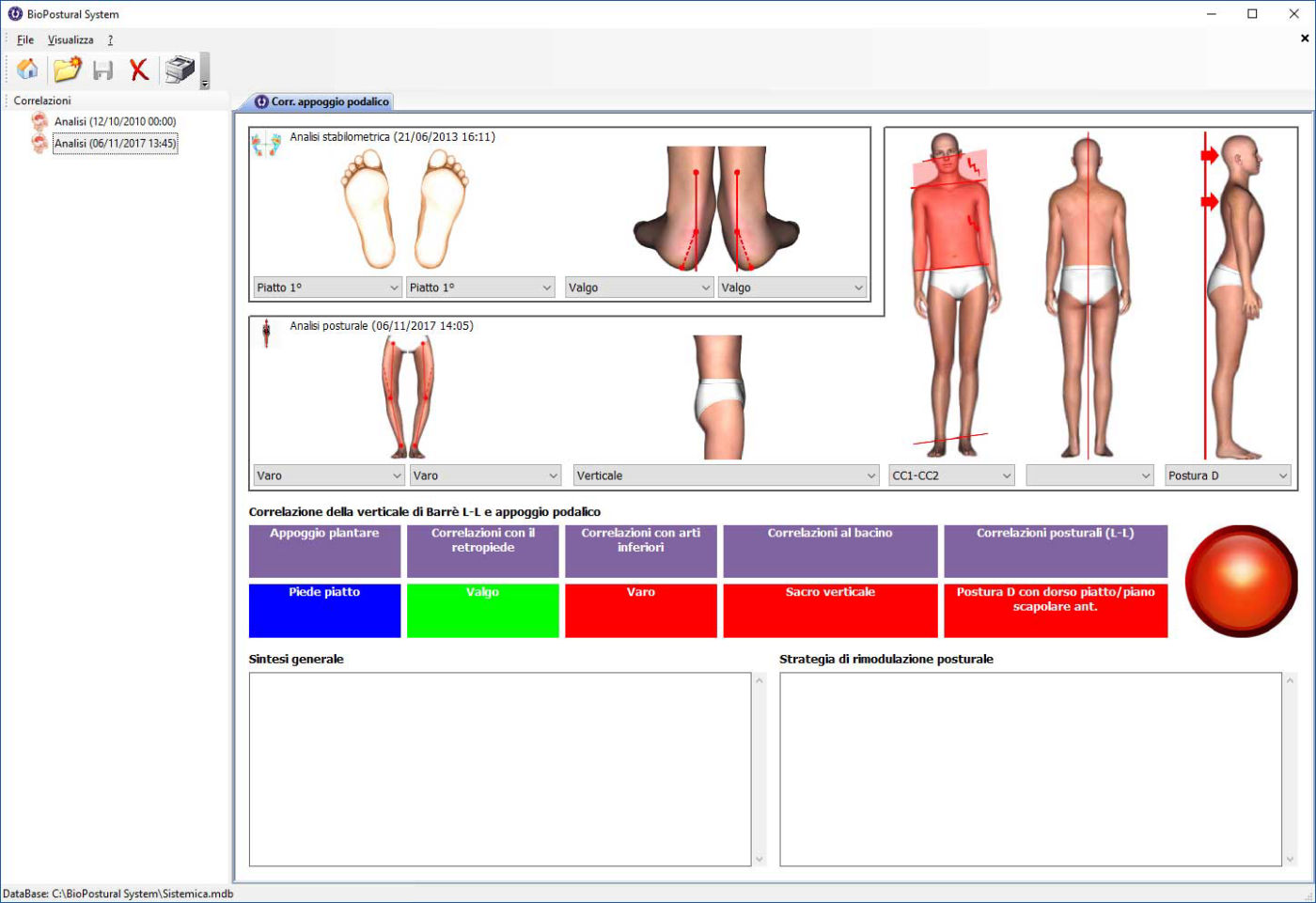

Here the correlations between postural analysis and breech support are objectified
